Truss Fabrications
The purpose of this information is to provide specific guidance targeted at areas within the fabrication process that will lead to improvements in the finished product. It is our aim to educate and provide awareness that will save our customers money from correcting potential design flaws.

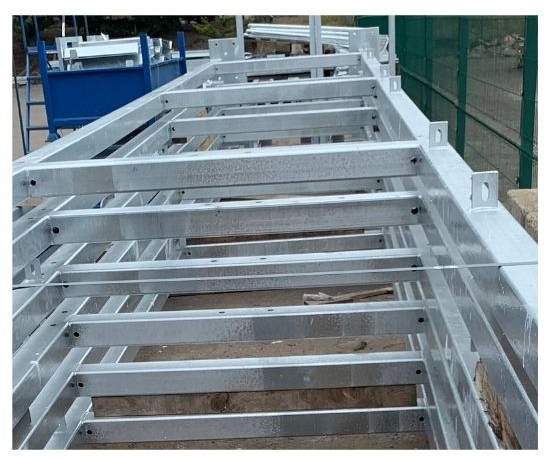

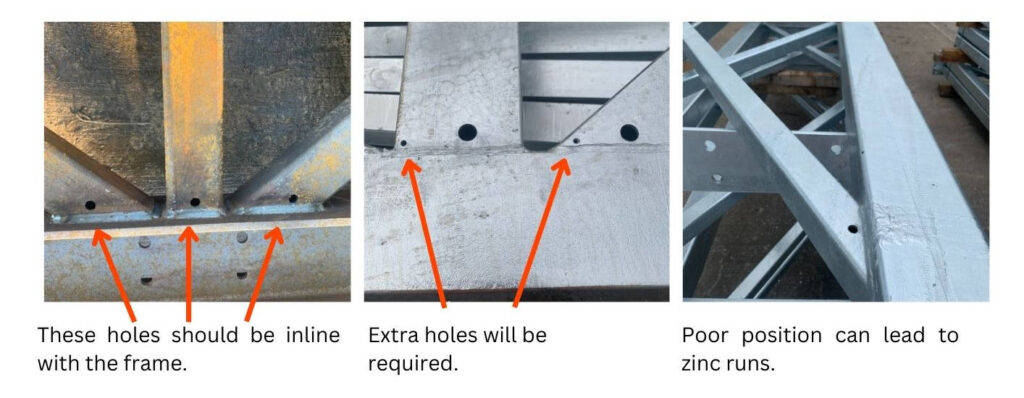

A common error encountered is incorrect hole position in truss fabrications. As shown below, holes are frequently positioned on the face of the fabrication and this is in fact 90 degrees out. They should ideally be in line with the frame.

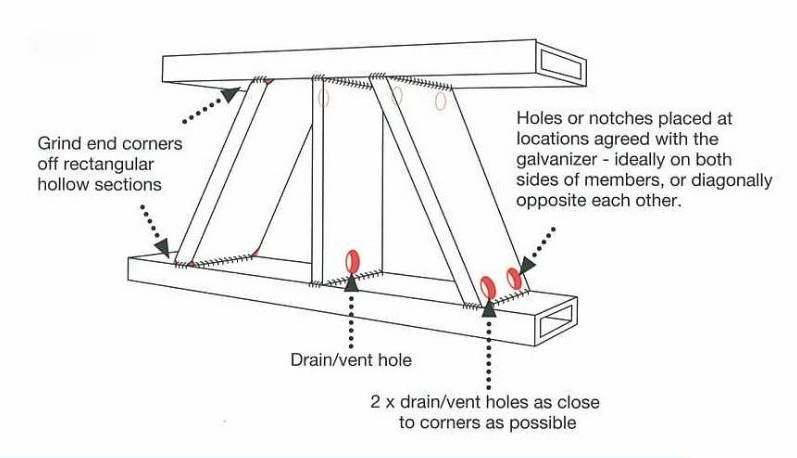

The diagram below illustrates the correct positioning of holes and suggests the options that can be used.
Should you wish for any further information please do not hesitate to contact one of our experts.
